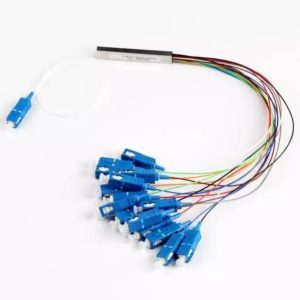

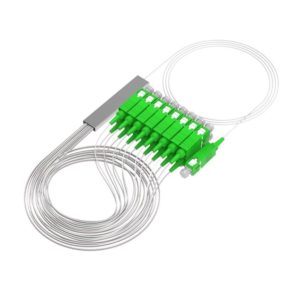

The 1×16 plc splitter is putting PLC splitter chip and input, output optical fiber array in a square metal tube, out with the diameter of 0.9mm or 250um bare fiber, fiber can be welded, can also be processing various types of optical fiber connector.
Features
- Excellent Mechanical, Small Size
- High Reliability
- Low insertion Loss and low Polarization Dependent loss
- High channel counts
- Excellent Environmental Stability and Widely Used
The main technical parameter
Product Name | 16 way blockless plc splitter |
Wavelength(nm) | 1260-1650 |
Insertion Loss(dB) | ≤13.5 |
PDL(dB) | ≤0.3 |
Uniformity(dB) | ≤1.0 |
Return Loss(dB) | ≥50 |
Directivity(dB) | ≥55 |
Temperature Range(℃) | (-40~+75) |
Storage Temprature(℃) | (-40~+85) |
